Optimise your building efficiency with Daikin AHU advanced solutions
Ventilation is essential for building design and management, directly impacting health, safety, comfort, efficiency, and regulatory compliance. Daikin’s air handling units deliver superior air quality and energy efficiency, with flexible designs suited for various buildings and applications, enhancing both working environments and overall performance.

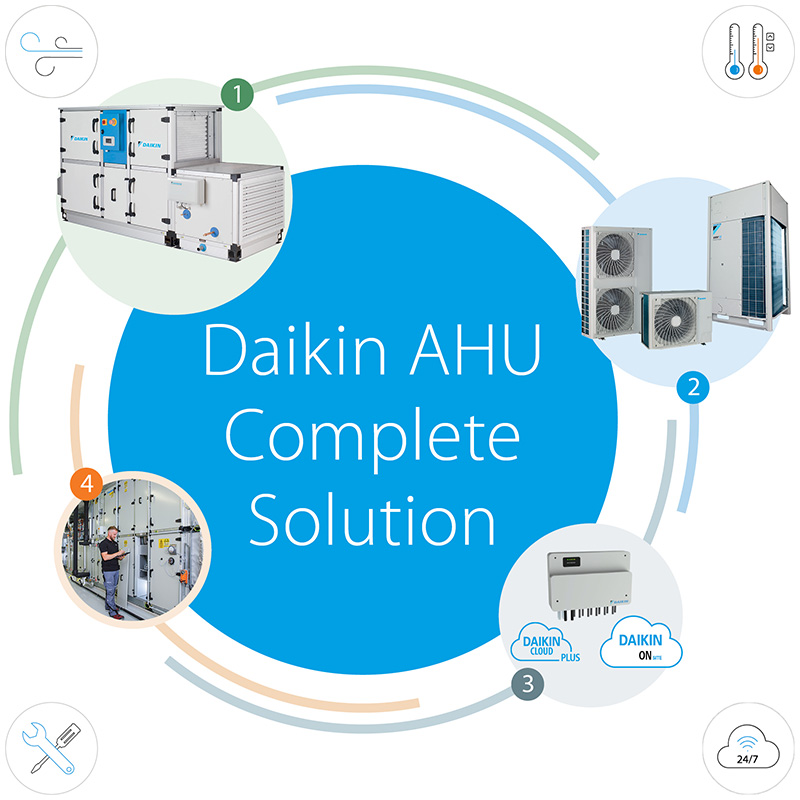

How Daikin’s complete HVAC solution helps you achieve peak efficiency?
- Top-tier solutions: Achieve high energy efficiency and lower CO2 footprint across all segments and every step of your HVAC system.
- Seamless integration and communication: Ensure every component works in harmony; integrating AHU with a heat recovery system is even more effective.
- One-stop contact: Get everything you need from design support to spare parts and service, reducing time and effort lost in contacting multiple suppliers.
- Easier and faster commissioning: Enjoy reliable operation with pre-programmed, configured, and factory-tested controls, not only enhance the operational reliability but also save time and reduce manpower costs during installation, commissioning and also maintainance.
Ventilation:
Achieve highest indoor air quality with most efficient heat recovery Daikin AHUs, featuring heating, cooling & humidification to deliver the precise comfort environment.
Service:
From commissioning, spare parts to maintenance, Daikin’s service network ensures quick issue resolution and reliable performance, keeping your AHU system running smoothly.
Condensing unit:
Seamless installation and superior efficiency when connecting Daikin condensing units (ERA / VRV) with Daikin AHUs using our unique X controls.
Control:
Save time and costs with Daikin’s plug-and-play control systems. Easy on-site assembly and cloud-based solutions ensure you’re in control, no matter where you are.

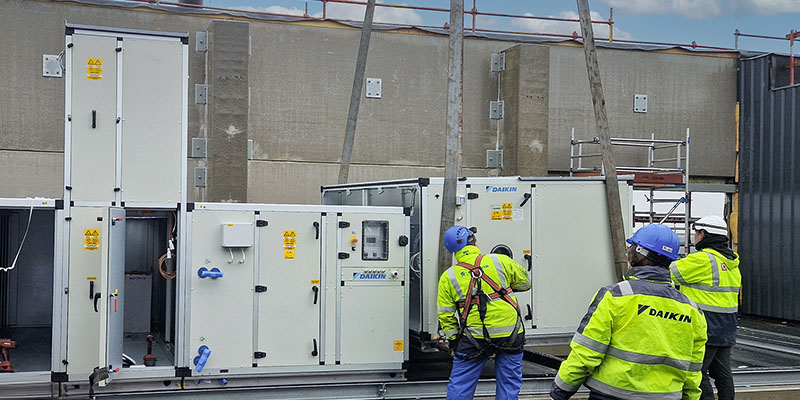

Supporting your success, no matter your role in the project
Selection tool
Reference cases
Start your ventilation project with the Daikin selection tool
Drastically reduce selection time with our user-friendly air handling unit selection software interface, ASTRA, to visualise your customised AHU solution that suits your needs and location.
- Intelligent software: The intelligent core ensures high-quality selections tailored to your specific requirements.
- Pre-uploaded parameters: Competitive solutions available within the Wizard, instantly providing a 3D result ready for customisation. Modify your unit to meet your needs, then generate and download technical reports, price lists, and fan curve charts in various formats.
Sustainable HVAC solutions: R-32 compatible AHUs
Daikin, the leader in innovative HVAC solutions, introduces the R-32 compatible AHU for Compact series L & T, Modular series R & P and Professional series. As the first in the market to offer full R-32 compatibility across outdoor units (VRV / ERA), AHUs, and controls, Daikin provides a comprehensive HVAC solution that meets your ventilation and decarbonisation needs.
Daikin Fresh Air Package

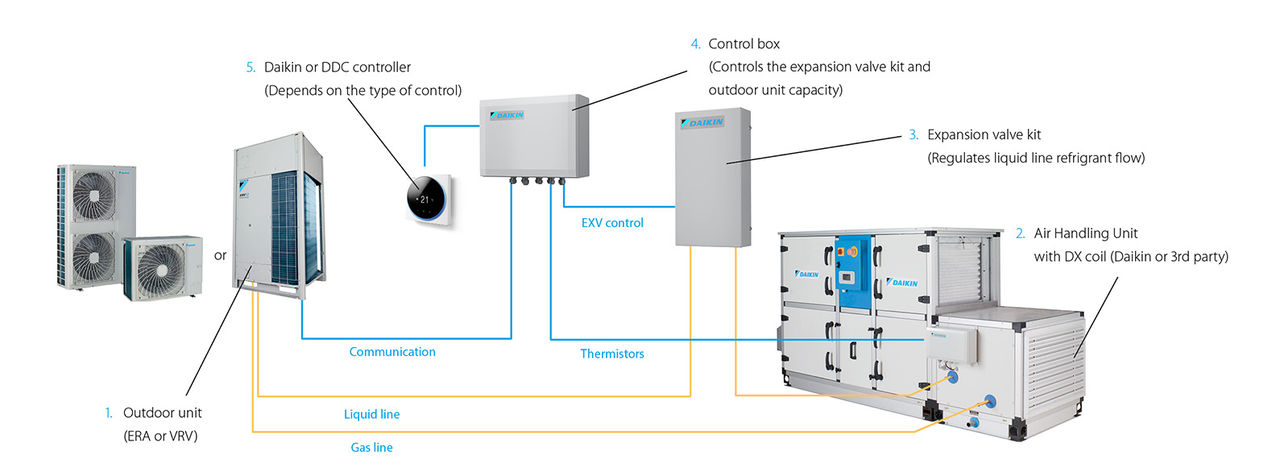

Daikin’s DX kits offer seamless integration for your entire building’s ventilation system. With our unique DX connection, you can effortlessly connect your air handling unit to any Daikin VRV or ERA inverter condensing unit.
- Save time with plug-and-play solution: The integrated expansion valve and control box ensure no extra configurations are needed, simplifying installation.
- Reduced design work: Designers can rely on our support to design a straight forward integration with Daikin fresh air package solution.
- Optimal performance: Streamline your HVAC system, ensuring a hassle-free installation and increased the overall efficiency of your building’s ventilation performance with the reduced energy costs to the end users.

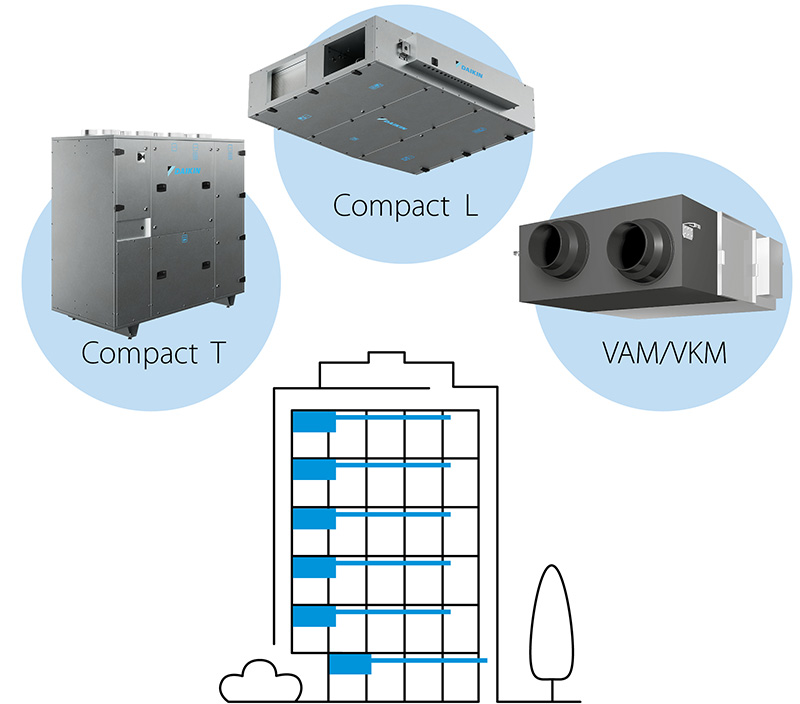

Centralised and decentralised ventilation
Daikin offers centralised and decentralised ventilation solutions to meet diverse building needs. Centralised systems provide efficient air distribution from a single point, while decentralised systems offer flexible, easy-to-install units for specific areas. Both ensure optimal indoor air quality and energy efficiency.

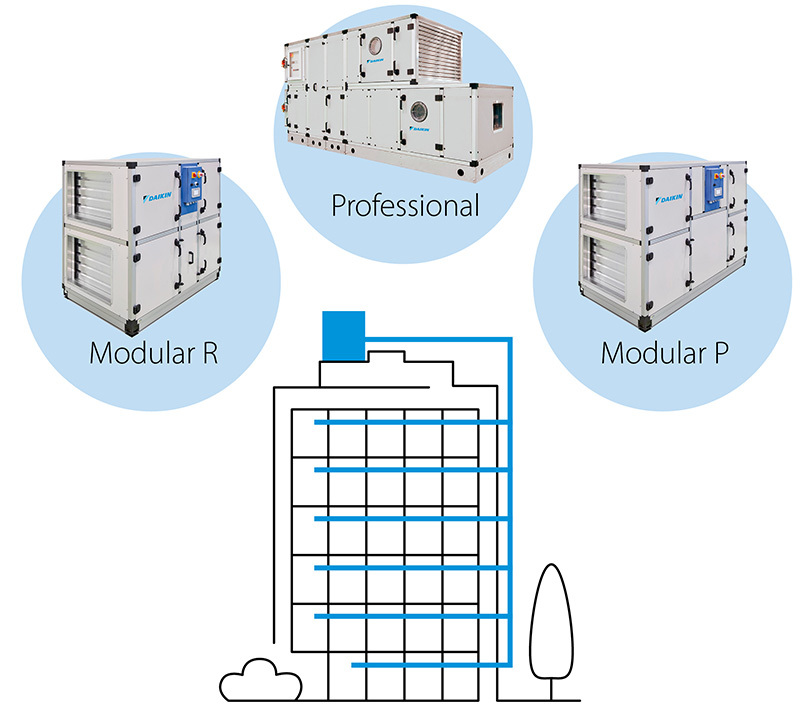

Centralised Ventilation
Decentralised Ventilation
Our wide portfolio of air handling units

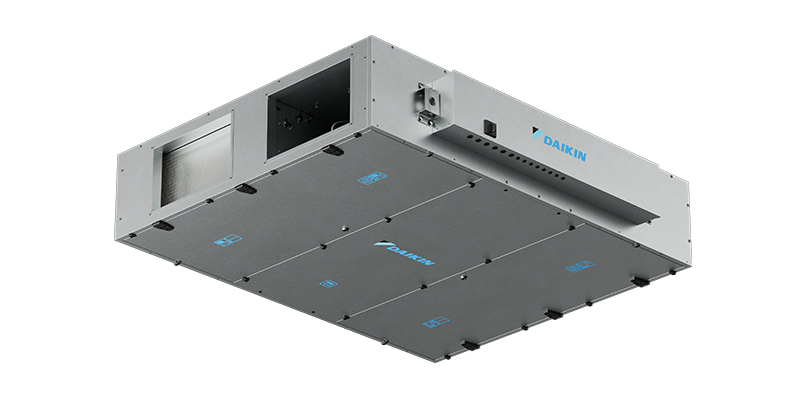

Compact L
Ceiling suspended AHU
- Airflow : Up to 3.450 m3/h
- Available in 6 sizes
- Easy to install with DX/water/Electric coil
- Compatible with R410a & R32 refrigerant DX coils
- Quiet operation
- Highest level of comfort
- False ceiling application (Zero footprint)
- Counter flow HX with upto 92% efficiency

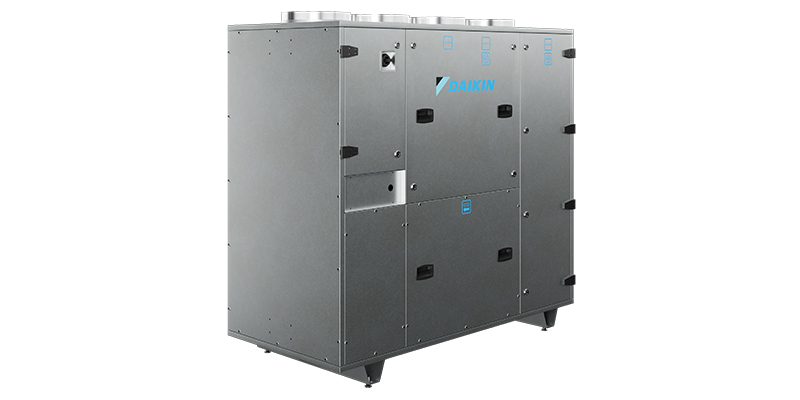

Compact T
Floor mounted top discharge AHU
- Airflow : Up to 4.200 m3/h
- Available in 6 sizes
- Easy to install with DX/water/Electric coil
- Compatible with R410a & R32 refrigerant DX coils
- Quiet operation
- Highest level of comfort
- Smallest footprint
- Counter flow HX with upto 92% efficiency
- Easy to install in any retrofit buildings

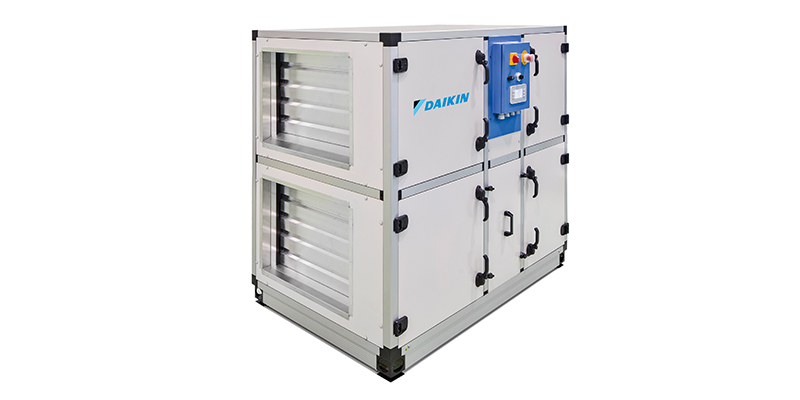

Modular R
Heat recover wheel type Air Handling unit
- Airflow: Up to 25.000 m³/h
- Available in 10 sizes
- Easy Connection: Compatible with DX and water coils
- Installation: Suitable for both indoor and outdoor settings
- Control Options: Available with or without integrated controls
- Energy Efficiency: Very high energy-efficient AHUs
- Heat Exchanger: Rotary wheel heat exchanger (HX)
- Factory Configured: Pre-programmed and factory-tested controls for easy setup

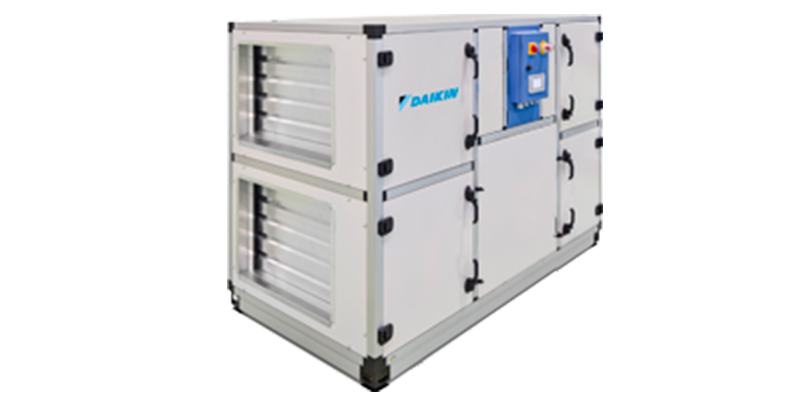

Modular P
Plate type heat recover Air Handling unit
- Airflow: Up to 20.000 m³/h
- Available in 10 sizes
- Easy Connection: Compatible with DX and water coils
- Installation: Suitable for both indoor and outdoor settings
- Control Options: Available with or without integrated controls
- Energy Efficiency: Very high energy-efficient AHUs
- Heat Exchanger: Counter flow plate heat exchanger (HX)
- Factory Configured: Pre-programmed and factory-tested controls for easy setup

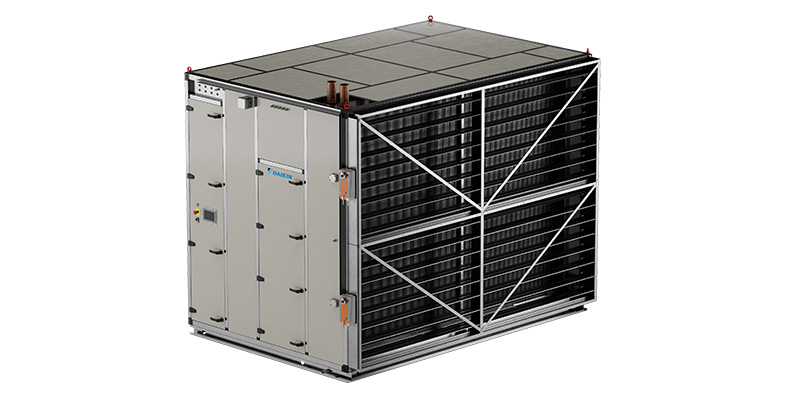

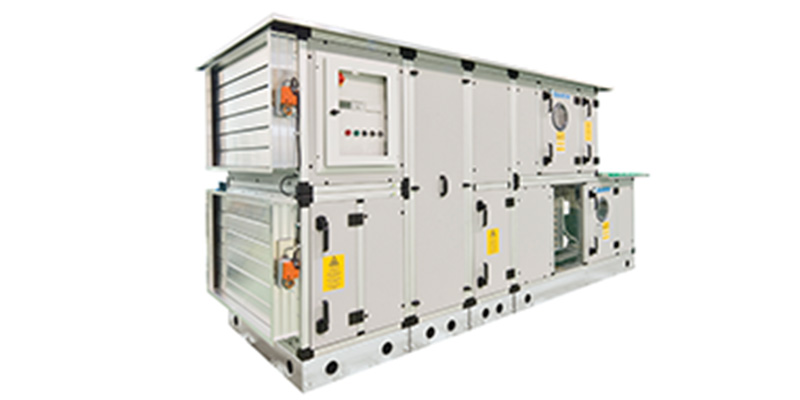

Professional
Customised AHU to meet all your specific needs
- Airflow : Up to 144.000 m3/h
- Possible to match exact required dimensions
- Available with & Without controls
- Precise temperature control option
- Highest level of comfort with connection to Chiller / Heat pumps / DX condensing units
- Hygienic, ATEX, RLT certification possible
- Factory fitted & Configured control availability

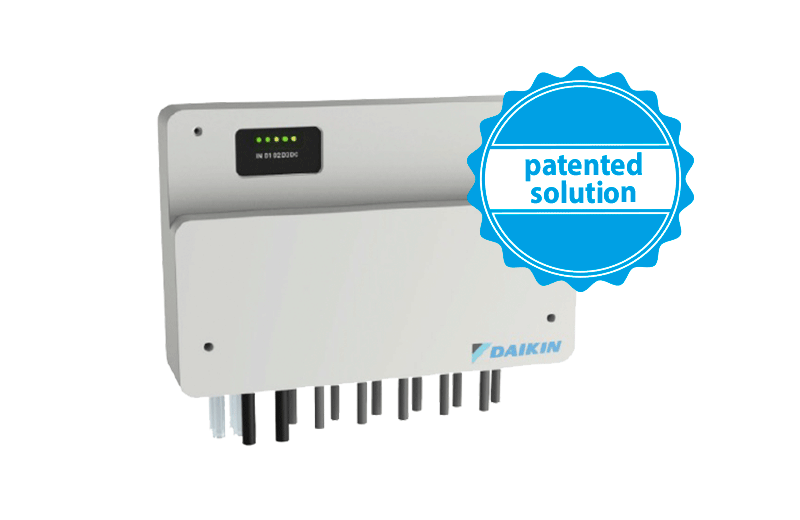

Daikin Digital Control
Plug and play control system
- Maximum flexibility in selecting up to 310 I/O (inputs/outputs)
- Integrate both low and high voltage systems with support up to 75 kW for versatile applications.
- User friendly control interface and communication with Daikin Digital controller
- Free cooling/free heating management
- VRV direct expansion & Chilled water systems management
- All components are internally wired
- Faster connection between sections
- Programming schedule
- Indoor Air Quality (IAQ) controlled by CO2 Probe
- Supervision and Control management local, remote options (Modbus, Bacnet)
Daikin on Site
Remote monitoring and control for chiller plants and air handling units
- Monitor and control your chiller or AHU anytime, anywhere
- Remote diagnostic support by Daikin experts for optimal system performance and longevity
- Access operational data for enhanced control and reliability
- High security for data privacy, storage, and transport.
- Optimize operation and maintenance costs

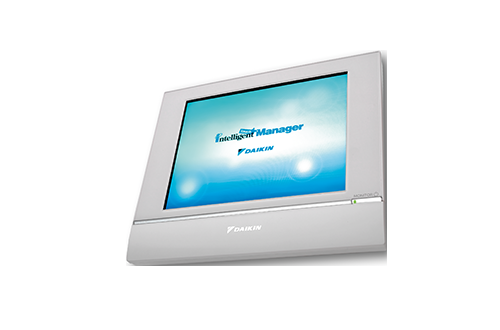

Intelligent Touch Manager (ITM)
Manage your entire building with one interface
Ideal for medium to large commercial applications, Possible to control multiple AHUs & VRVs including indoor units with single iTM.
Seamless integration with VRV, AHU, and third-party equipment, allowing you to control climate, lighting, and alarms from a single interface
Optimize your energy use by monitoring consumption and detect energy waste.
Easy-to-use analytics, saving up to 15%.
Modular design: allowing you to customize the system to fit any building size and needs.
24/7 remote monitoring by connecting with Daikin i-Net for continuous system performance.
Certifications and quality assurance
Our Air Handling Units are recognized for their exceptional quality and performance, certified by the Eurovent Certification. These certifications ensure that our products meet the highest standards of efficiency, hygiene, and reliability.
Certifications:
- Eurovent Certified Performances: Guarantees that our AHUs meet stringent performance criteria.
- Exceeding 2018 ErP – ECODESIGN Requirements: Ensures compliance with the latest energy efficiency and environmental standards.
- Hygiene Directive VDI 6022: Our Compact L and Professional ranges are certified, ensuring they meet strict hygiene standards.
- Hygiene Directive DIN 1946: Certification for our Professional range, emphasizing our commitment to health and safety.
- RLT Certified Performances: Validates the reliability and efficiency of our AHUs.
Behind the scenes: crafting excellence
Step inside our Italian factory and and explore the journey behind crafting Daikin AHU. Witness our precision engineering and expert craftsmanship that ensure every Daikin AHU meets the highest standards of quality and innovation.
Case studies
BMW Meerschman
Discover how Daikin's advanced HVAC solution ensures optimal climate control, energy efficiency, and superior comfort for the BMW Meerschman showroom, enhancing the overall customer experience.
Intro Bergheim shopping centre
Daikin implemented a customised and energy-efficient HVAC Total Solutions for, ensuring optimal climate comfort and energy efficiency across 22 retail units in a new shopping centre near Cologne.
Garitage Park
Learn about how Daikin implemented an HVAC solution, ensuring the best possible climate while avoiding the use of gas on a site the size of over 23 football pitches.
Learn more
For more product details
Discover our services and solutions with Daikin360
From expert installation to maintenance and repair, our team ensures your HVAC systems run efficiently all year long. Trust Daikin for reliable solutions that keep your home or business comfortable, while saving on energy costs.
Daikin's remote monitoring and control for chiller plants and air handling units
Using Daikin's remote monitoring results in optimum use and costs over the system's entire lifetime while increasing efficiency and reliability.
Achieve optimal air quality
Ensure a fresh, healthy, and comfortable indoor environment with Daikin’s advanced ventilation solutions. From energy-efficient heat recovery systems to large-scale air handling units, our systems seamlessly integrate with your HVAC setup to deliver optimal air quality.
